Technical Stuff

I'll do some pretty complicated stuff to avoid paying money

2025-12-05, by DrFriendless

I had a dream, Joe. Well, it was a bit like a dream. A vision came to me in some sort of half-waking delirium of how to cope with all of the plays downloads. So it was a bit like a nightmare too.

That was a couple of mornings ago, and on the same morning I remembered I’d better check the Billing. Billing is the part of AWS that tells me how much to pay, and why. I don’t mind paying it, but I hate looking at it in case it says “you owe a million bucks because you fucked up.”

It was up a bit, and in particular the red VPC section was up a lot, so I had to investigate why that was. It was because of a thing called VPC Endpoints.

These are a thing that take a bit of head-getting-round. AWS has a load of services that are available on the internet, for example Parameter Store - that’s a service that lets me store little things I need to remember, for example where I was up to lok at the auth thread on BGG. Because that’s stored on the internet I can access it from a web server running on the internet.

On the other hand, there are Virtual Private Clouds, which are networks which are separated from the internet. They use TCP/IP to talk to each other, but they have their own system of addressing which isn’t internet-compatible. Like, my wife can tell me at home “put that on the high shelf”, but if she says the same thing to the guy at the supermarket she’ll get a funny look.

The same thing happens if my code inside a VPC wants to get to the internet, and in particular to an AWS service on the internet - it has no knowledge of how to get to the internet, nor of how the service on the internet will figure out what is meant by “the high shelf”.

So what a VPC Endpoint is is a tunnel from my VPC, through AWS’s internal network, to a service that’s exposed on the internet. And it just costs maybe 7c per hour, but there are 720 hours in a month, so that $50 if you don’t pay attention. So I paid attention to that.

The particular problem I had was that I wanted to get some metrics from the database (and hence, needed to be inside the VPC where the database is) and write them to CloudWatch Logs (and hence needed to be on the Internet, where CloudWatch Logs is). The VPC Endpoint solved the problem, but it’s expensive.

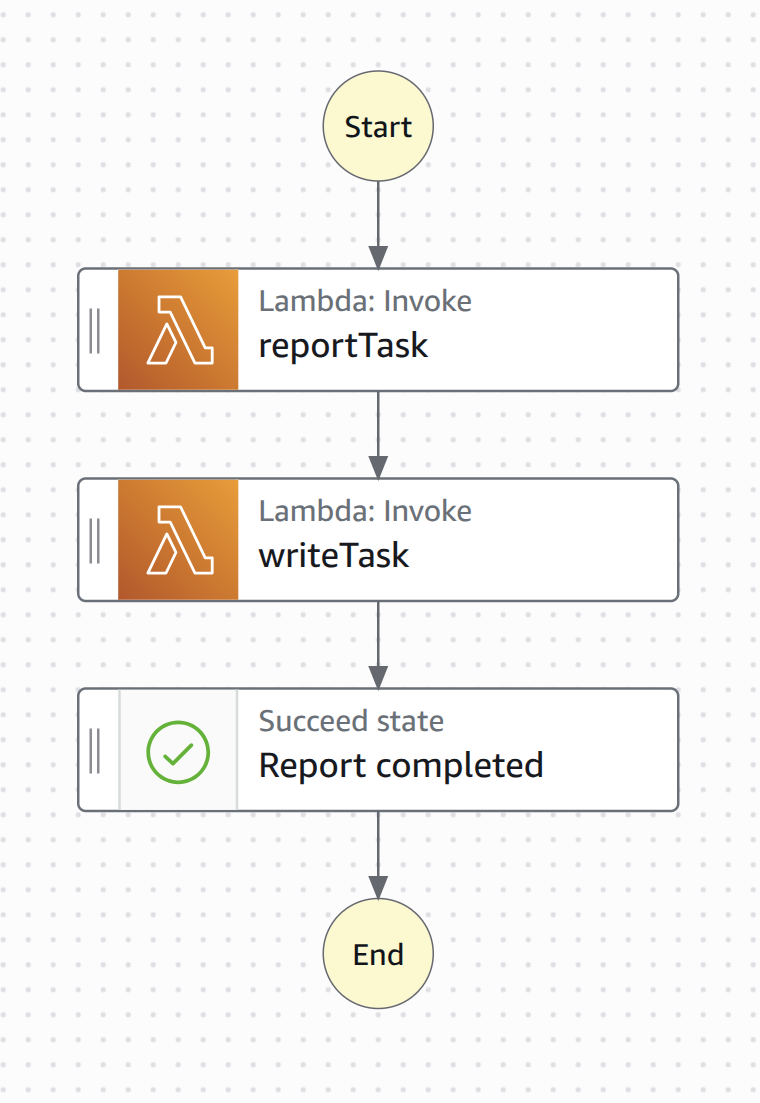

The alternative I found was a Step Function. A Step Function is a state machine where each state is some AWS task. In my case, the first state was a Lambda which reads the metrics from the database, and the second was a Lambda which writes the metrics to CloudWatch. AWS doesn’t care that the first task ran inside the VPC and the second ran on the internet, it has strong magic to do such things. So that was a very nice result.

But anyway, back to the nightmare. The problem on my mind was downloading plays. I have 96000 files of plays to download, with each of 3000 geeks broken up into about 30 years (I’ve been on BGG for 21 years, OMG). I am in a rush to process them all, but BGG is not - it goes mad at me if I ask for more than about 100 plays every few seconds. So I can’t do all 3000 at a time, I have to spread them out.

My dream was to put those tasks themselves into a queue, and tell the Lambda which executes those tasks that it could only run once at a time. That gives me way more control over how much I hassle BGG.

The downloader did not yet have its bits and pieces described in the CDK (kind of a declarative language for building AWS infrastructure), so today’s job was to do all of that - two queues, five Lambdas, and associated hoohah to tell the Lambda to process the queue but only slowly. And as always with AWS, bunches of security configuration which is actually much nicer using CDK than the other options.

So in case you were as frustrated as I am with the lack of improvement on the site, that’s what has been happening! I feel that the downloader is approaching solidity in a way that will work with BGG’s constraints. Surely, the next thing must be some cool graphs, right?
